Backpropagation by hand, then automated: a micrograd walkthrough

Backpropagation is how a neural network figures out which way to move each weight. The name sounds scary, but it’s really just the chain rule, applied one node at a time on a computational graph. Here I do it once by hand for a single neuron, then put the same logic into a tiny autograd engine (code that computes gradients for you) and check the answer against PyTorch.

The chain rule in one sentence

If $o$ depends on $n$, and $n$ depends on $w$, then

$$\frac{\partial o}{\partial w} = \frac{\partial o}{\partial n}\cdot\frac{\partial n}{\partial w}.$$

The first part is the gradient that has already reached $n$ coming back from the output. The second part is the local derivative of just one operation. So basically, backpropagation starts at the output with $\partial o/\partial o = 1$ and keeps multiplying by local derivatives, step by step, until it reaches the inputs.

Simple rules for each operation

Each operation only has to know how to hand a gradient back to its own inputs. Nothing else. Write $\bar{v}$ for $\partial o/\partial v$, the gradient of the final output with respect to node $v$.

Operation	Local rule
$c = a + b$	$\bar a \mathrel{+}= \bar c$, $\bar b \mathrel{+}= \bar c$ (addition copies the gradient to both inputs)
$c = a \cdot b$	$\bar a \mathrel{+}= b\,\bar c$, $\bar b \mathrel{+}= a\,\bar c$ (each input gets the other input times the gradient)
$c = \tanh(a)$	$\bar a \mathrel{+}= (1 - c^2)\,\bar c$
$c = a^k$ ($k$ a constant)	$\bar a \mathrel{+}= k\,a^{k-1}\,\bar c$
$c = e^a$	$\bar a \mathrel{+}= c\,\bar c$

The += is important, and it’s an easy bug to miss. If a value is used in more than one place, its gradient is the sum of what comes back from each use (that’s the multivariable chain rule). Plain = would overwrite one part with another, so b = a + a would give $\bar a = 1$ instead of 2.

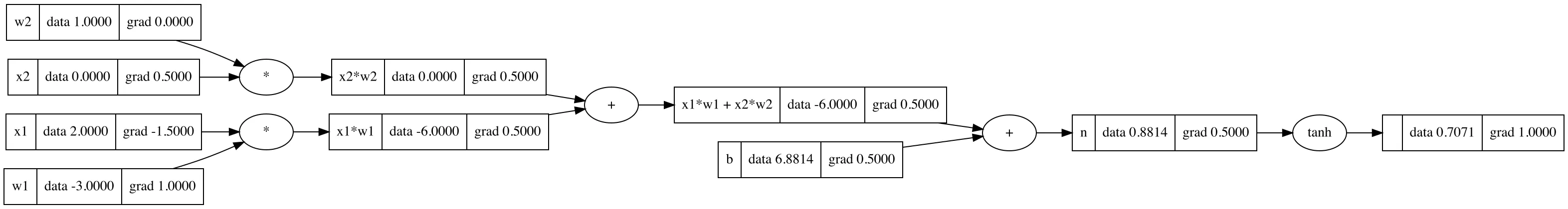

Doing it by hand for one neuron

Take the neuron from the computational graphs note: $n = x_1w_1 + x_2w_2 + b$ and $o = \tanh(n)$, with $x_1=2$, $x_2=0$, $w_1=-3$, $w_2=1$ and $b \approx 6.8814$. Then $n \approx 0.8814$ and $o \approx 0.7071$.

1. $\bar o = 1$.
2. $\bar n = 1 - o^2 = 1 - 0.5 = 0.5$.
3. The two additions copy the gradient: $\bar b = 0.5$, and the terms $x_1w_1$ and $x_2w_2$ each get $0.5$.
4. The multiplications swap: $\bar x_1 = w_1 \cdot 0.5 = -1.5$, $\bar w_1 = x_1 \cdot 0.5 = 1.0$, $\bar x_2 = w_2 \cdot 0.5 = 0.5$, $\bar w_2 = x_2 \cdot 0.5 = 0$.

$\bar w_2 = 0$ makes sense: $x_2 = 0$, so wiggling $w_2$ does nothing to the output right now.

Automating it

Each operation saves a small function, _backward, that applies its local rule. The tricky part is the order. A node can only pass its gradient back once it has received everything from all the nodes that use it. A topological sort (an ordering where every node comes after its inputs) gives exactly that, and then we just walk it backwards.

import math

class Value:
    def __init__(self, data, _children=(), _op=''):
        self.data, self.grad = data, 0.0
        self._prev, self._op = set(_children), _op
        self._backward = lambda: None          # leaf nodes do nothing

    def __add__(self, other):
        other = other if isinstance(other, Value) else Value(other)
        out = Value(self.data + other.data, (self, other), '+')
        def _backward():
            self.grad += out.grad
            other.grad += out.grad
        out._backward = _backward
        return out

    def __mul__(self, other):
        other = other if isinstance(other, Value) else Value(other)
        out = Value(self.data * other.data, (self, other), '*')
        def _backward():
            self.grad += other.data * out.grad
            other.grad += self.data * out.grad
        out._backward = _backward
        return out

    def tanh(self):
        t = math.tanh(self.data)
        out = Value(t, (self,), 'tanh')
        def _backward():
            self.grad += (1 - t**2) * out.grad
        out._backward = _backward
        return out

    def backward(self):
        topo, visited = [], set()
        def build(v):                     # children first, then the node
            if v not in visited:
                visited.add(v)
                for child in v._prev:
                    build(child)
                topo.append(v)
        build(self)
        self.grad = 1.0
        for v in reversed(topo):          # output first, inputs last
            v._backward()

x1, x2, w1, w2 = Value(2.0), Value(0.0), Value(-3.0), Value(1.0)
b = Value(6.8813735870195432)
o = (x1*w1 + x2*w2 + b).tanh()
o.backward()
print(x1.grad, w1.grad, x2.grad, w2.grad)   # -1.5  1.0  0.5  0.0

Growing the engine

A few more methods make the engine actually usable:

• __radd__ and __rmul__ so that 2 * v and 1 + v work.
• __neg__ as self * -1, and __sub__ as self + (-other).
• __pow__ for a constant exponent, and __truediv__ as self * other**-1.
• exp() with the local rule $\bar a \mathrel{+}= e^a\,\bar c$.

A nice test is to build tanh out of smaller pieces, $\tanh(n) = (e^{2n} - 1)/(e^{2n} + 1)$, and backpropagate through that bigger graph. The gradients on $x_1, w_1, x_2, w_2$ come out the same. That was a good moment for me: how big or small you make each operation is up to you, as long as each one knows its local derivative.

Checking against PyTorch

PyTorch does the same thing, just on tensors. Use double precision so the numbers match closely:

import torch

x1 = torch.tensor([2.0], dtype=torch.double, requires_grad=True)
x2 = torch.tensor([0.0], dtype=torch.double, requires_grad=True)
w1 = torch.tensor([-3.0], dtype=torch.double, requires_grad=True)
w2 = torch.tensor([1.0], dtype=torch.double, requires_grad=True)
b = torch.tensor([6.8813735870195432], dtype=torch.double, requires_grad=True)

o = torch.tanh(x1*w1 + x2*w2 + b)
o.backward()
print(x1.grad.item(), w1.grad.item(), x2.grad.item(), w2.grad.item())
# about -1.5, 1.0, 0.5, 0.0

Same numbers as micrograd. The only real difference is size: in PyTorch each node is a whole tensor and the operations run on many numbers at once, but the bookkeeping is the same.

Key takeaways

• Backpropagation is just the chain rule: multiply the incoming gradient by each operation’s local derivative.
• Addition copies the gradient to its inputs. Multiplication gives each input the other input times the gradient.
• Use += for gradients, because a value used in several places collects gradient from each use.
• Walking a topological order backwards makes sure a node’s gradient is complete before it’s passed further back.
• PyTorch’s autograd gives the same numbers as a 40-line engine that works on single numbers.

Resources

• Andrej Karpathy, “The spelled-out intro to neural networks and backpropagation: building micrograd”, Neural Networks: Zero to Hero (video): https://www.youtube.com/watch?v=VMj-3S1tku0. The Value engine here is adapted from this lecture.
• Andrej Karpathy, micrograd (repository): https://github.com/karpathy/micrograd
• PyTorch, “A Gentle Introduction to torch.autograd”: https://pytorch.org/tutorials/beginner/blitz/autograd_tutorial.html
